THE ALL-NEW BMW 1 SERIES: MODELS, ENGINES, FEATURES AND TECHNICAL DATA
The BMW 1 Series stands for cleverly conceived sportiness and modern design. Explore the attractive options for the interior and exterior, dynamically optimised drive train and chassis components as well as innovative technologies and driver assistance systems. In the Technical Data section, you will find details and facts on the economical BMW 1 Series engines – from performance details such as hp, kW and Nm, via consumption and CO2 emissions, through to the dimensions of the individual models.
The BMW 1 Series stands for cleverly conceived sportiness and modern design. Explore the attractive options for the interior and exterior, dynamically optimised drive train and chassis components as well as innovative technologies and driver assistance systems. In the Technical Data section, you will find details and facts on the economical BMW 1 Series engines – from performance details such as hp, kW and Nm, via consumption and CO2 emissions, through to the dimensions of the individual models.
MODELS AND EQUIPMENT OPTIONS.
The strong individual model versions of the BMW 1 Series.

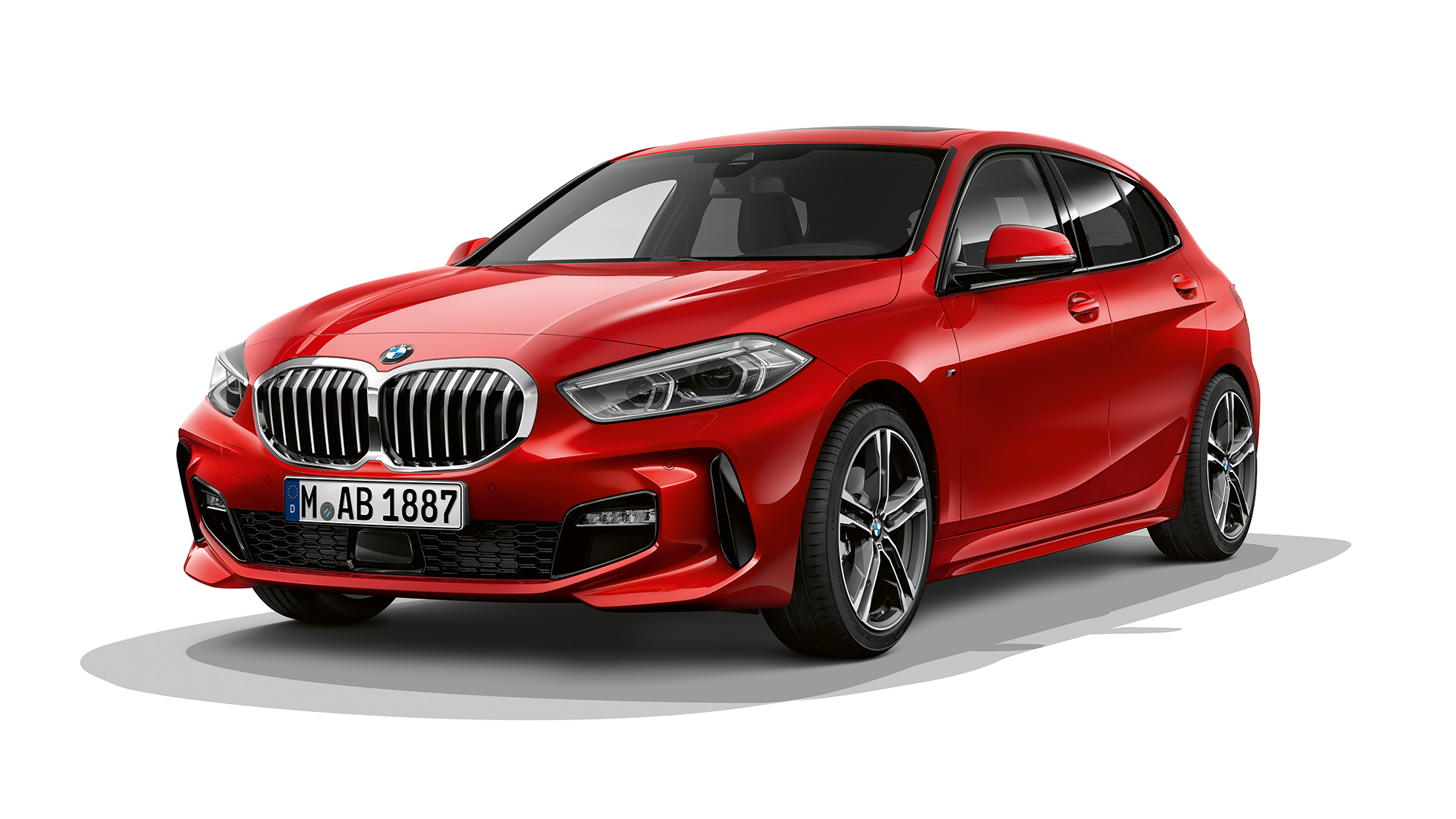

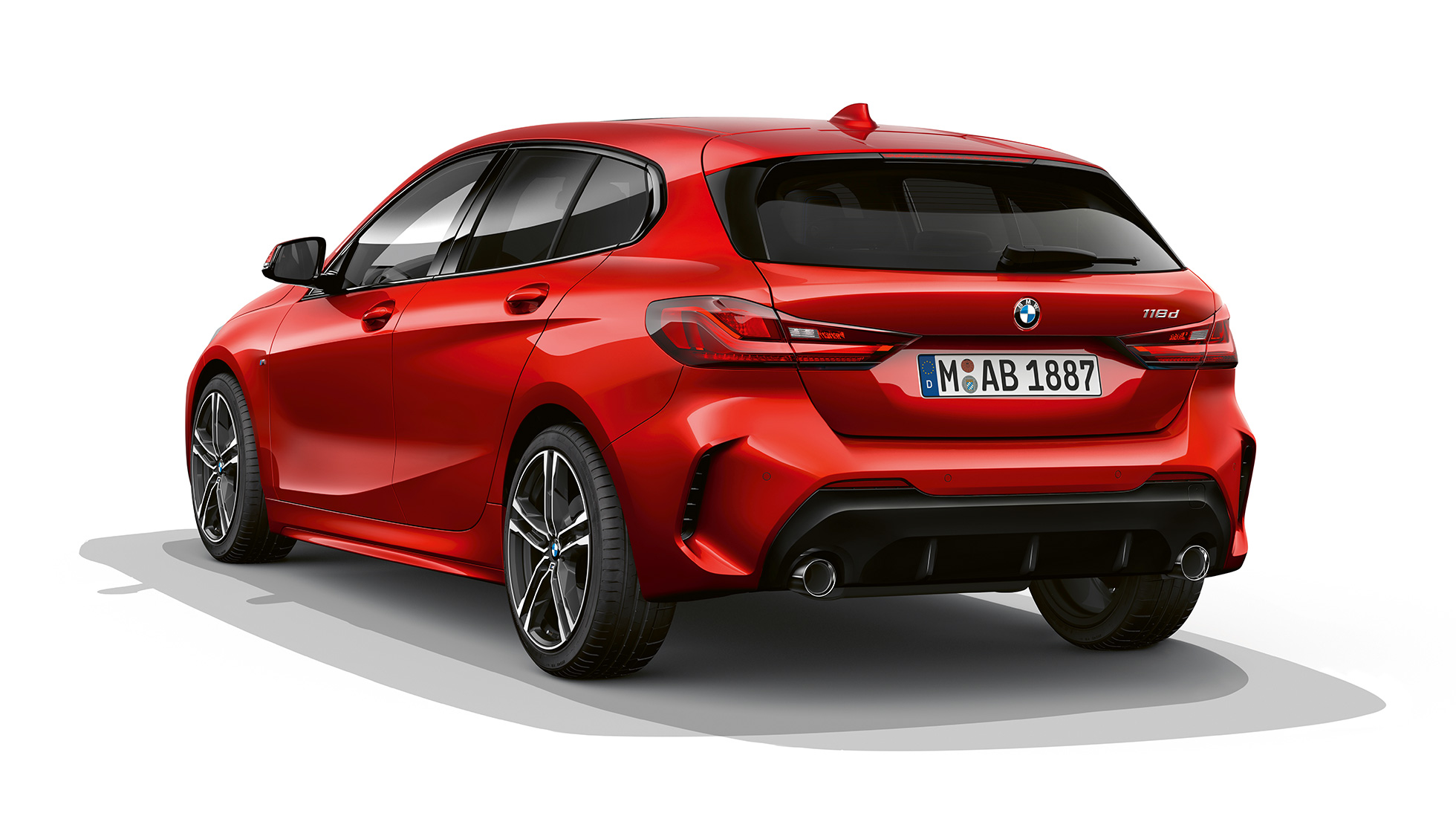

Model M Sport
The M Sport model gives the vehicle an even sportier touch. In addition to a sharpened appearance in the exterior and interior, the M Sport model guarantees an increase in driving pleasure. The M Sport suspension and the M Aerodynamics package noticeably optimise the driving dynamics. The contents of the Model Advantage, the LED headlights and the M Sports steering, complete the range.
The M Sport model gives the vehicle an even sportier touch. In addition to a sharpened appearance in the exterior and interior, the M Sport model guarantees an increase in driving pleasure. The M Sport suspension and the M Aerodynamics package noticeably optimise the driving dynamics. The contents of the Model Advantage, the LED headlights and the M Sports steering, complete the range.






Exterior
M Aerodynamics package with front apron, side skirts and rear apron with diffuser insert in Black high-gloss
BMW kidney grille with exclusively designed vertical slats in satinised aluminium
LED headlights
LED fog lights

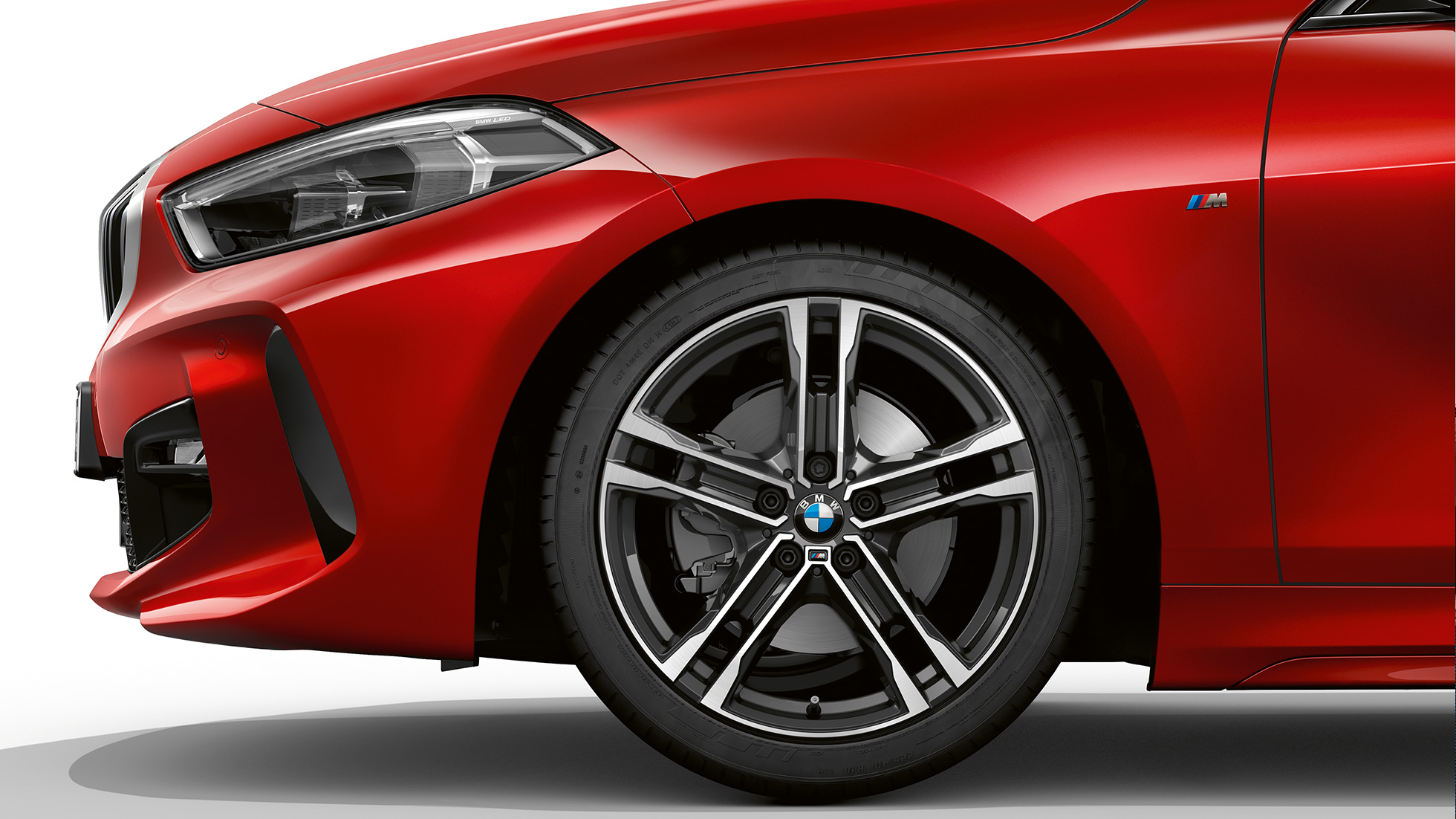

17" M light alloy wheels Double-spoke style 550 M Bicolour; other wheels available
M Sport suspension; other suspensions available
M Sport steering
BMW Individual high-gloss Shadow Line
M logo on the sides
Exclusive paintwork in Alpine White; other paintworks available
Park Distance Control (PDC)
Locking wheel bolts

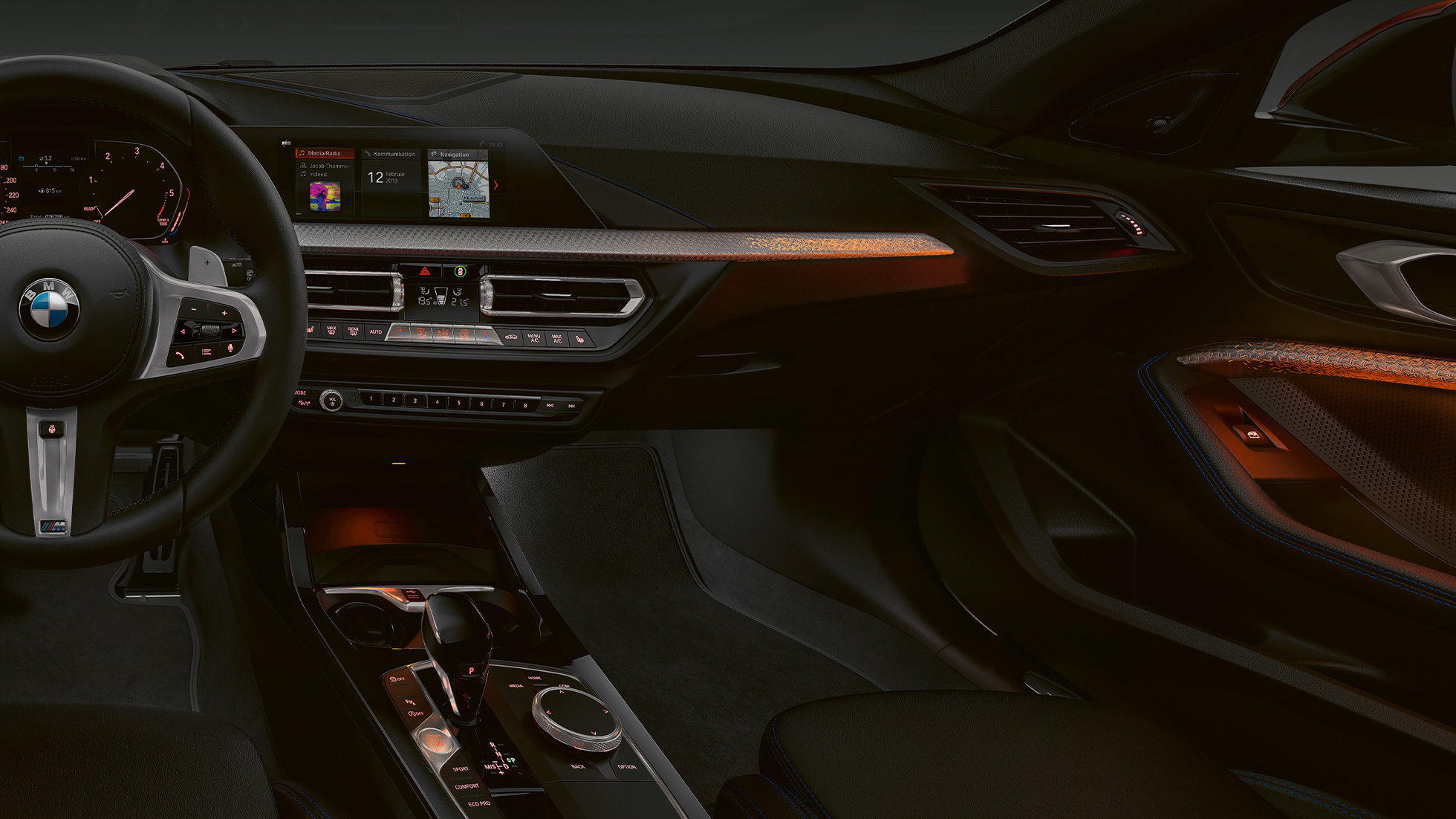

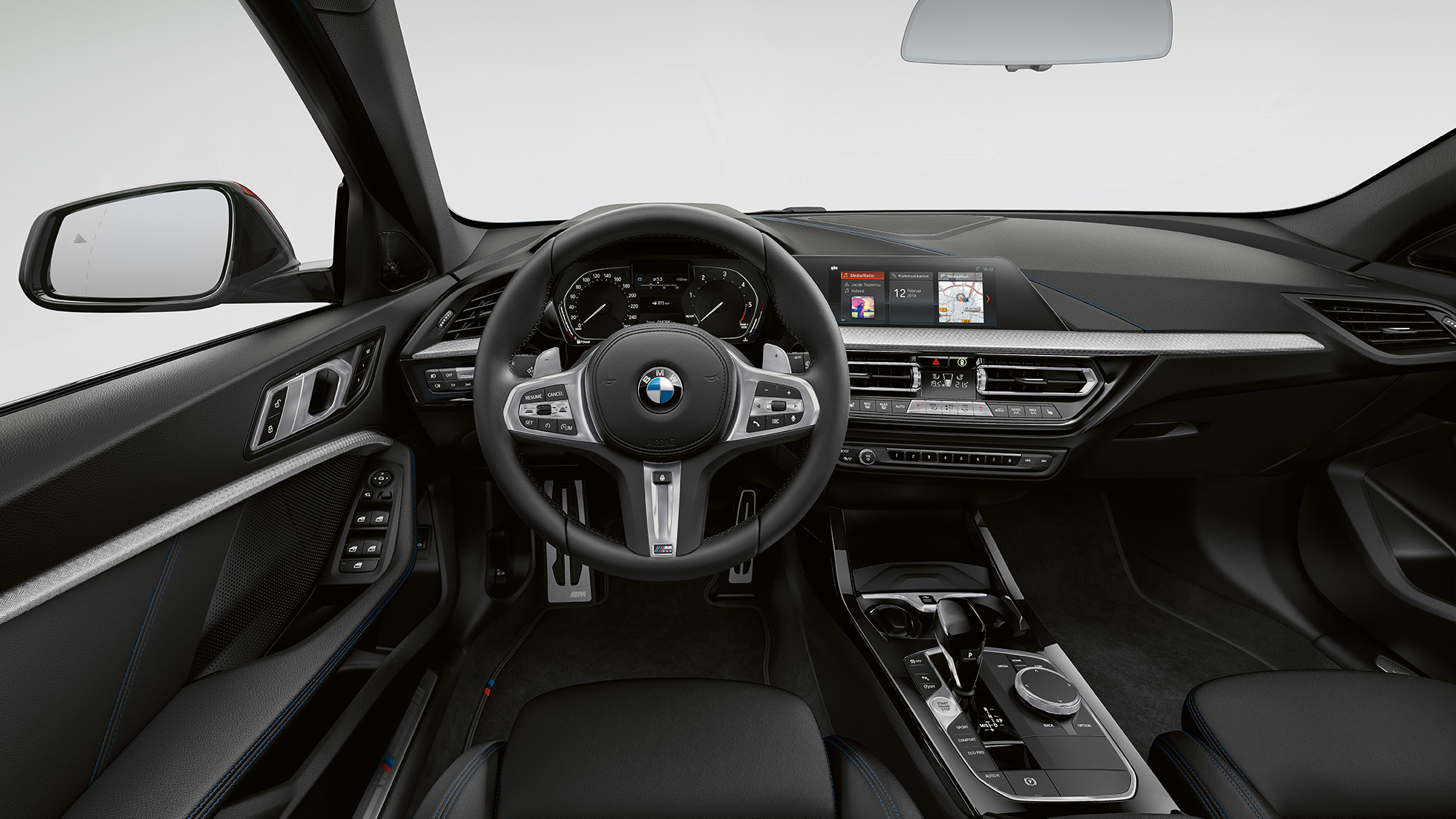

Interior
M door sill finishers, M driver's footrest and M pedals
Floor mats in Anthracite with exclusive M designation

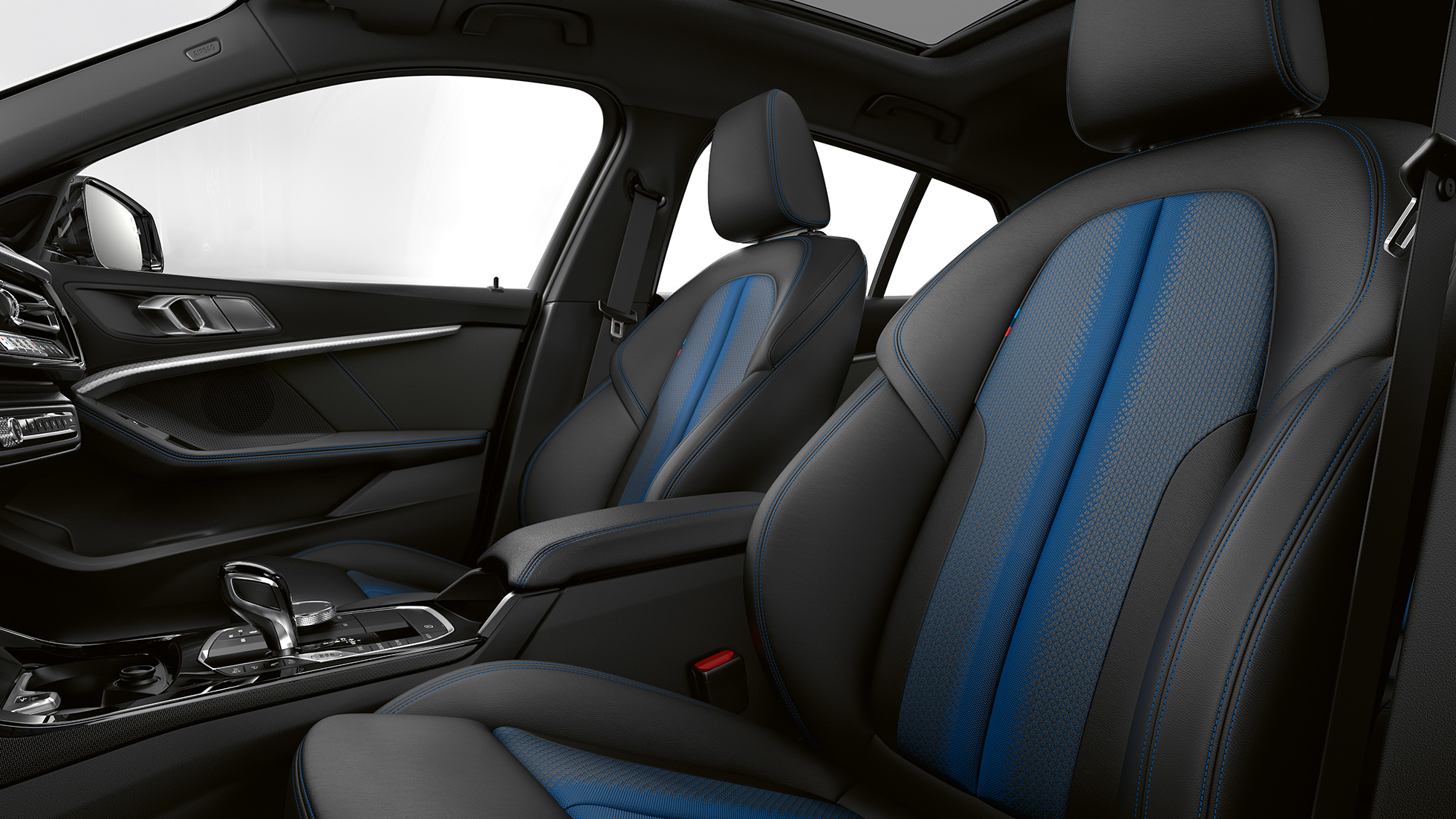

Sport seats for driver and front passenger in cloth ‘Trigon’ Sensatec Black; other upholsteries available
M Leather steering wheel
Vehicle key with exclusive M designation
BMW Individual headliner anthracite
Instrument cluster with M specific display
Interior trim finishers in ‘Illuminated Boston’; other trims available
Lights package
Storage compartment package
Cruise control with braking function
Height adjustment for front passenger seat

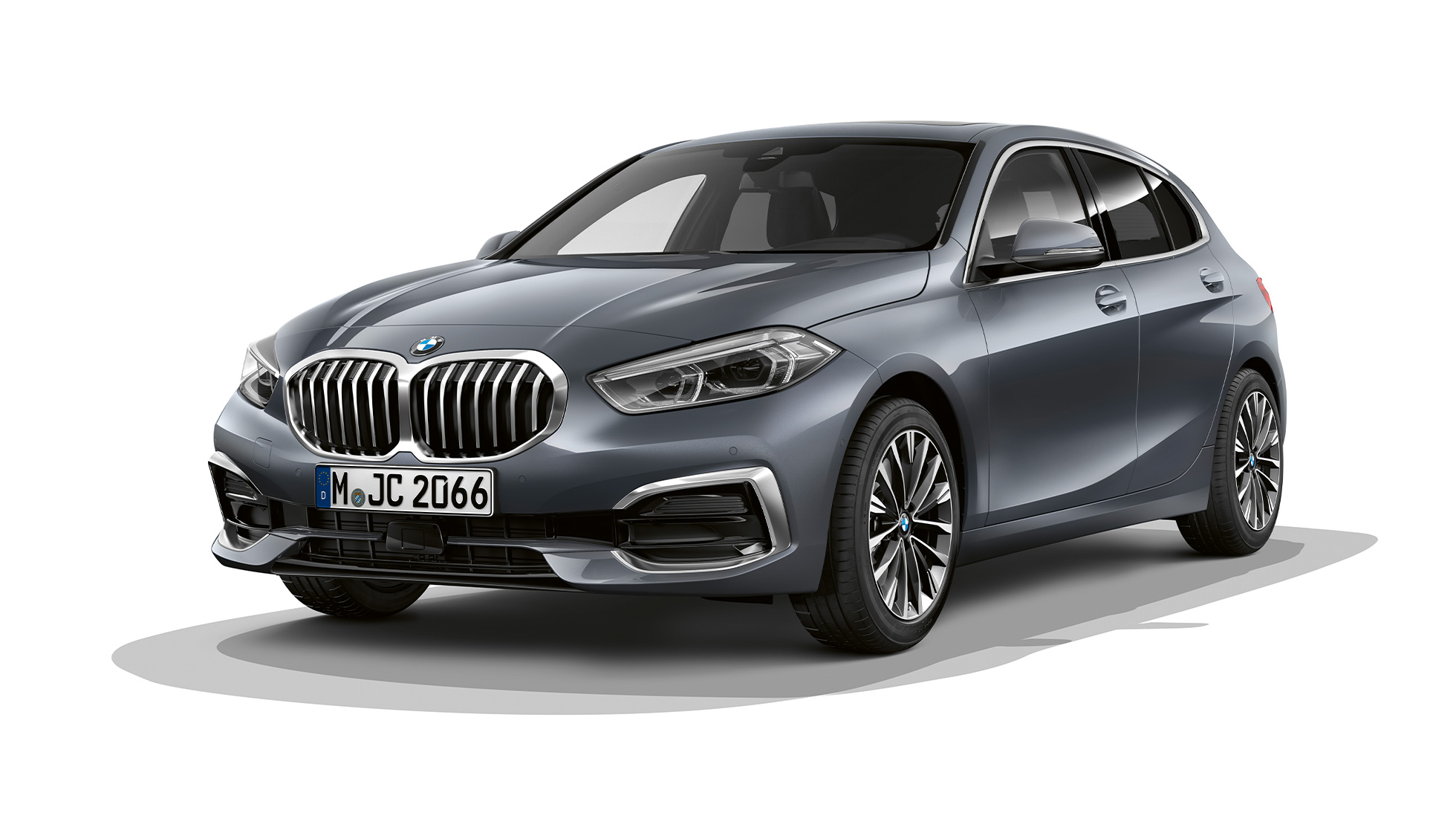

Model Luxury Line
The Model Luxury Line shows the elegant side of the vehicle. Elegant design elements made of satinised aluminium give the exterior its exclusive appearance. The stylish impression is also present in the interior. Here first-class leather upholstery and high-quality interior trim finishers characterise luxury. The contents of the Model Advantage, as well as the Lights package, the LED headlights and the LED fog lights, complete the range of the Model Luxury Line.
The Model Luxury Line shows the elegant side of the vehicle. Elegant design elements made of satinised aluminium give the exterior its exclusive appearance. The stylish impression is also present in the interior. Here first-class leather upholstery and high-quality interior trim finishers characterise luxury. The contents of the Model Advantage, as well as the Lights package, the LED headlights and the LED fog lights, complete the range of the Model Luxury Line.






Exterior
BMW kidney grille with exclusively designed vertical slats in satinised aluminium
Front apron with specific design elements in Line-specific geometry
Front bumper with specific design elements in satinised aluminium
LED headlights
LED fog lights

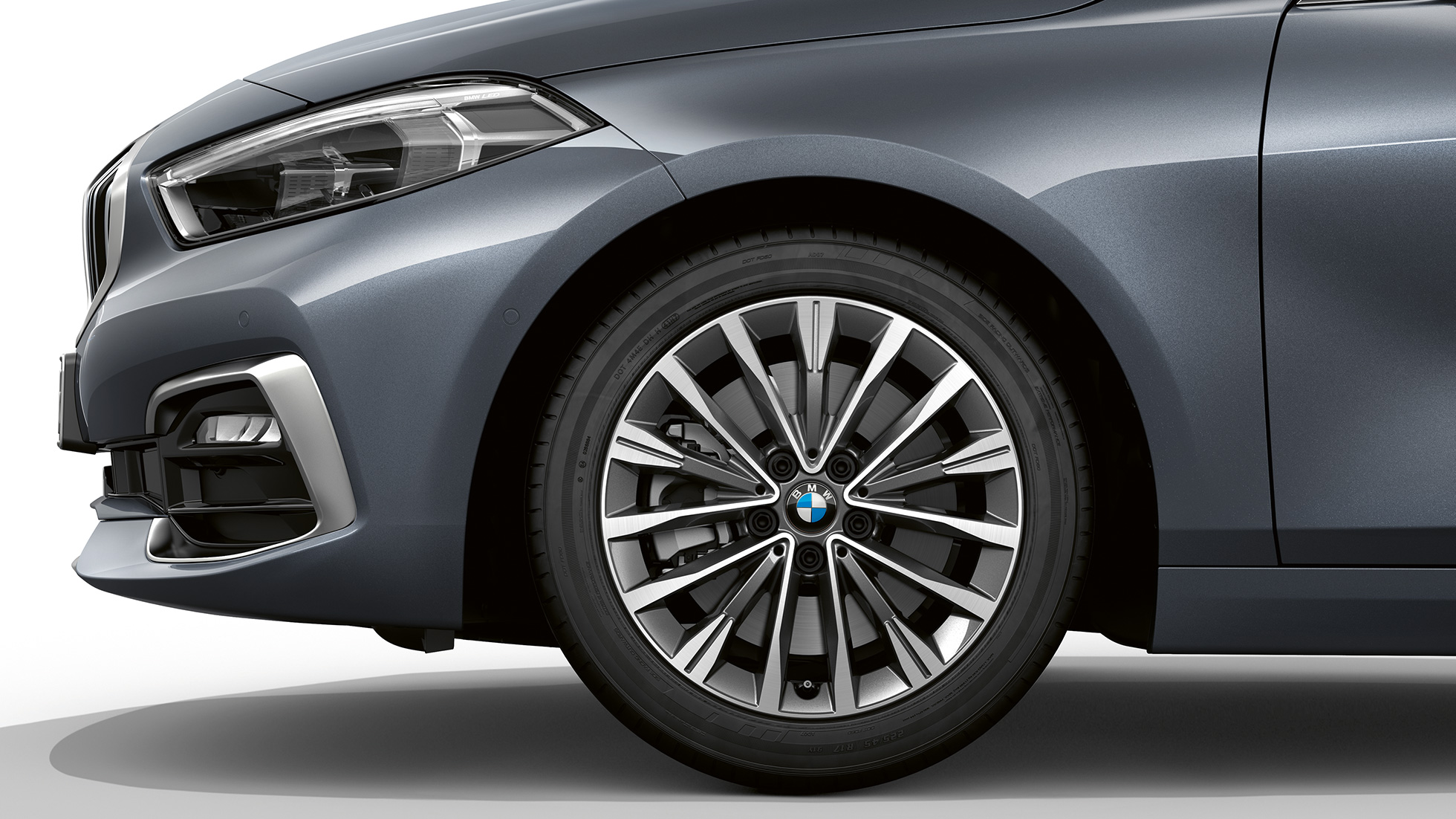

17" light alloy wheels Multi-spoke style 547; other wheels available
BMW Individual Exterieur Line Aluminium satinated
Park Distance Control (PDC)
Locking wheel bolts
Interior
Door sill finishers in plastic Black with aluminium inserts and with "BMW" designation

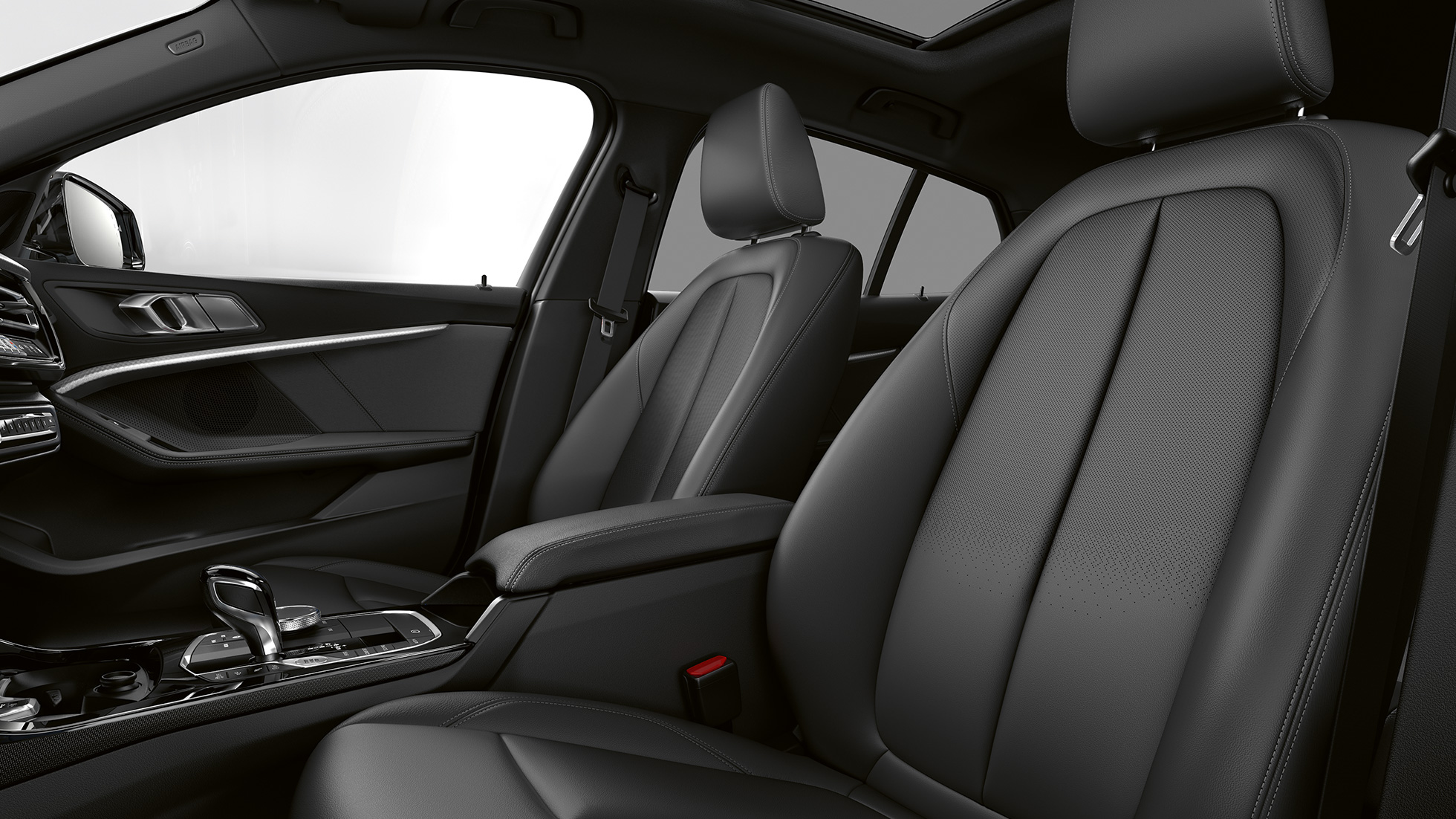

Seats in Leather 'Dakota' with perforations Black with Black contrast stitching; other upholsteries available (Leather 'Dakota' covers the central and side sections of the seats as well as the headrests. Styling perforations in the upper backrest segment.)

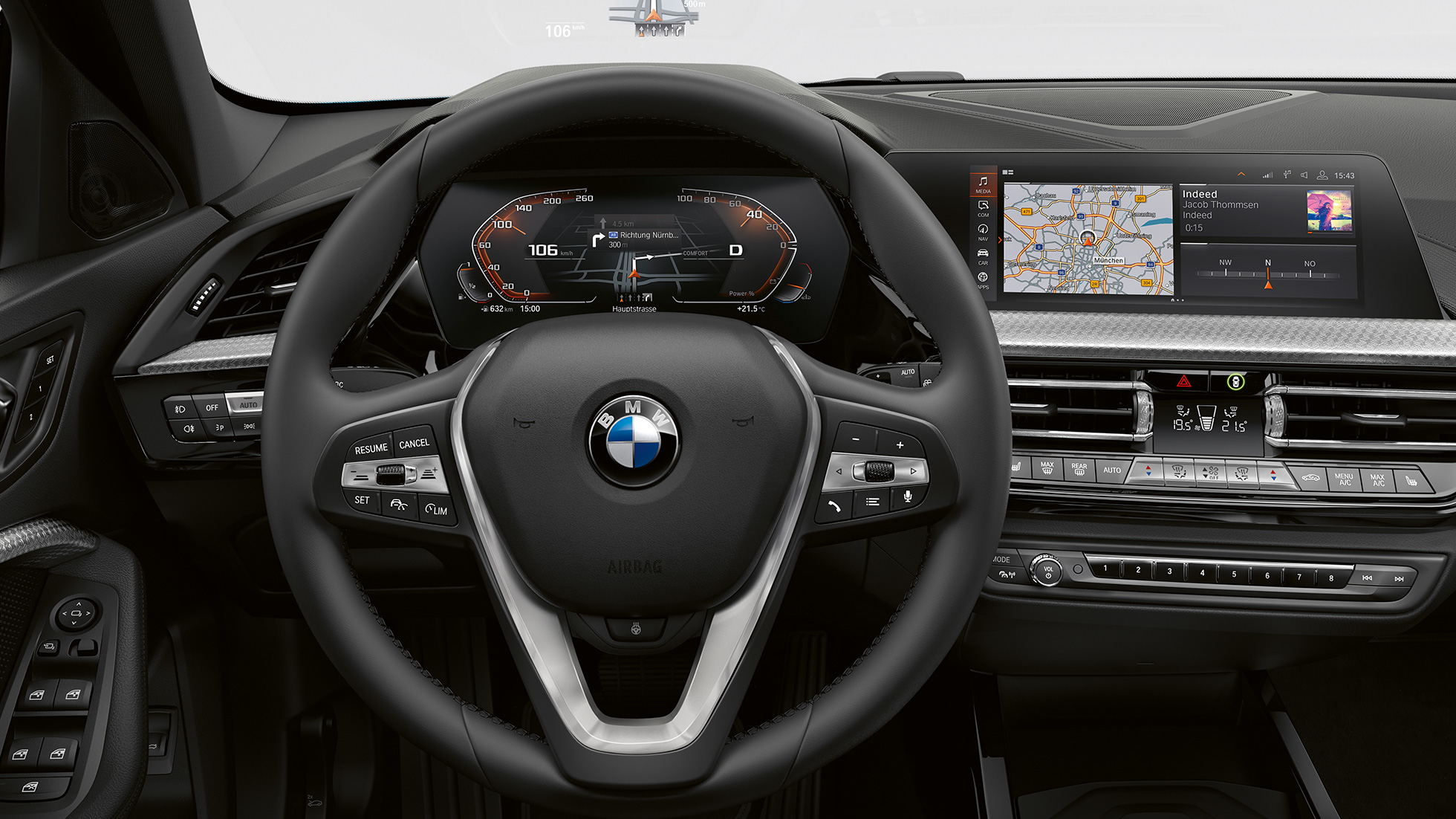

Sport leather steering wheel
Decorative stitching on the upper portion of the instrument panel

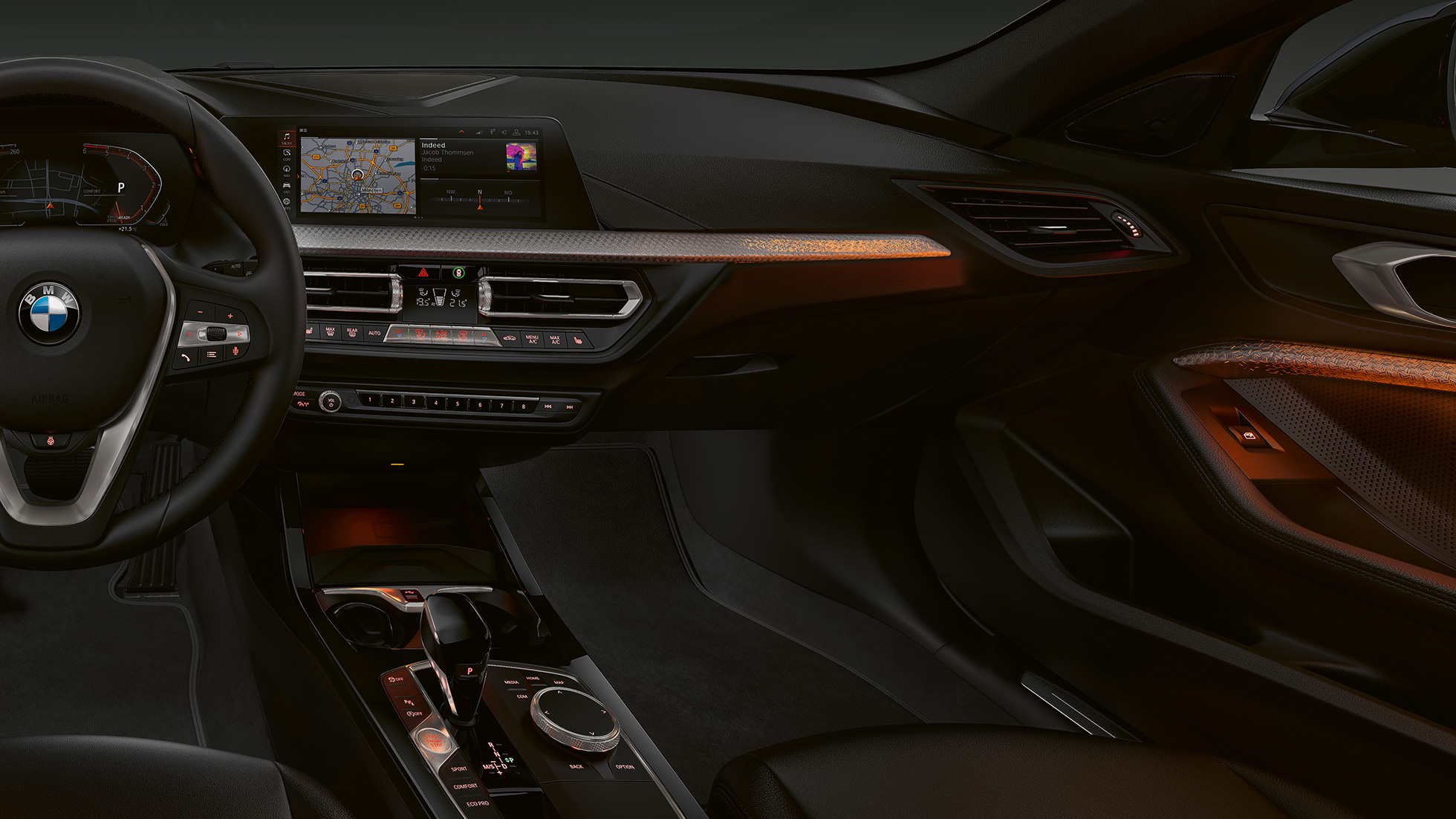

Interior trim finishers in ‘Illuminated Nice’; other trims available
Lights package
Storage compartment package
Cruise control with braking function
Height adjustment for front passenger seat

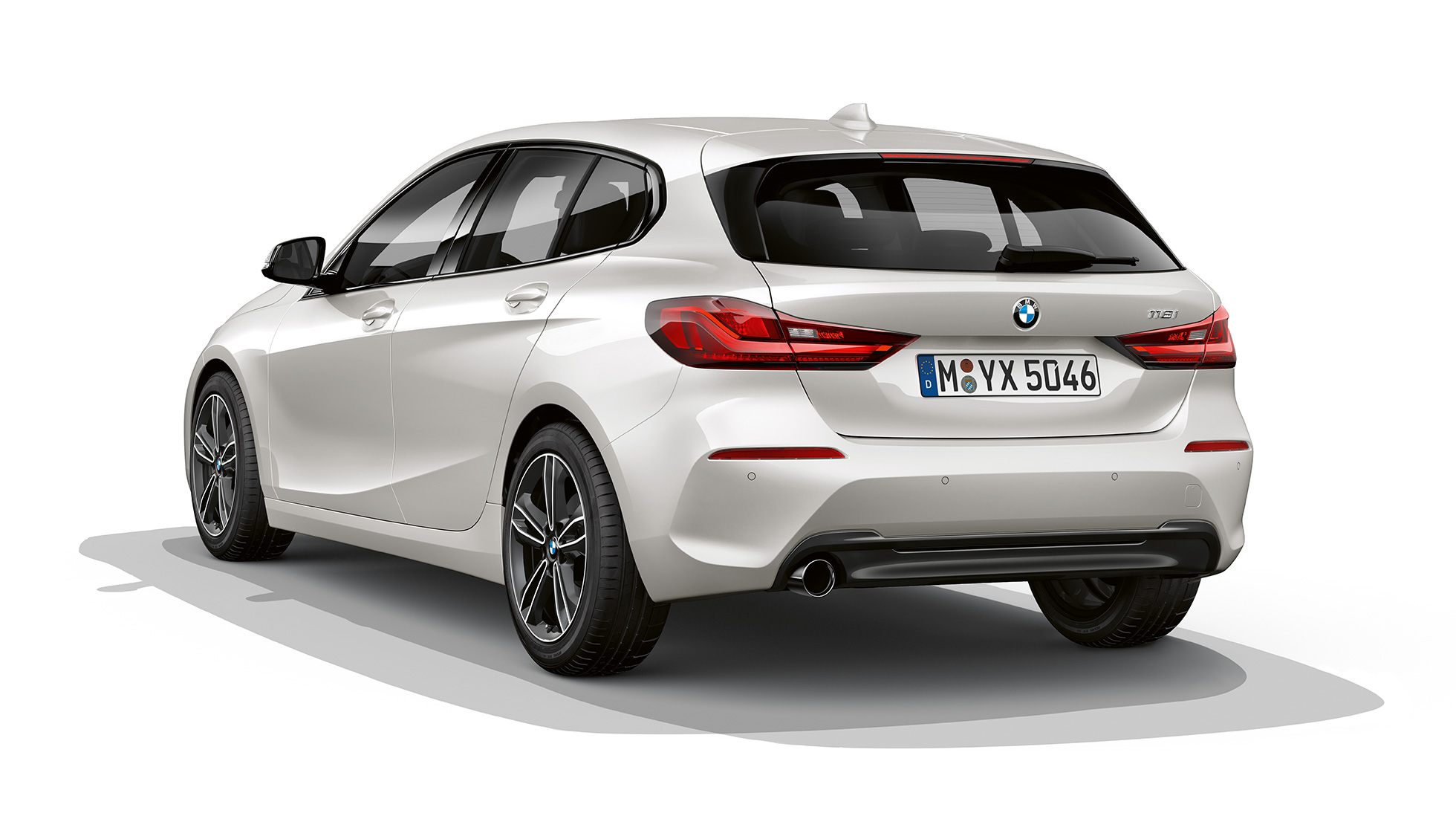

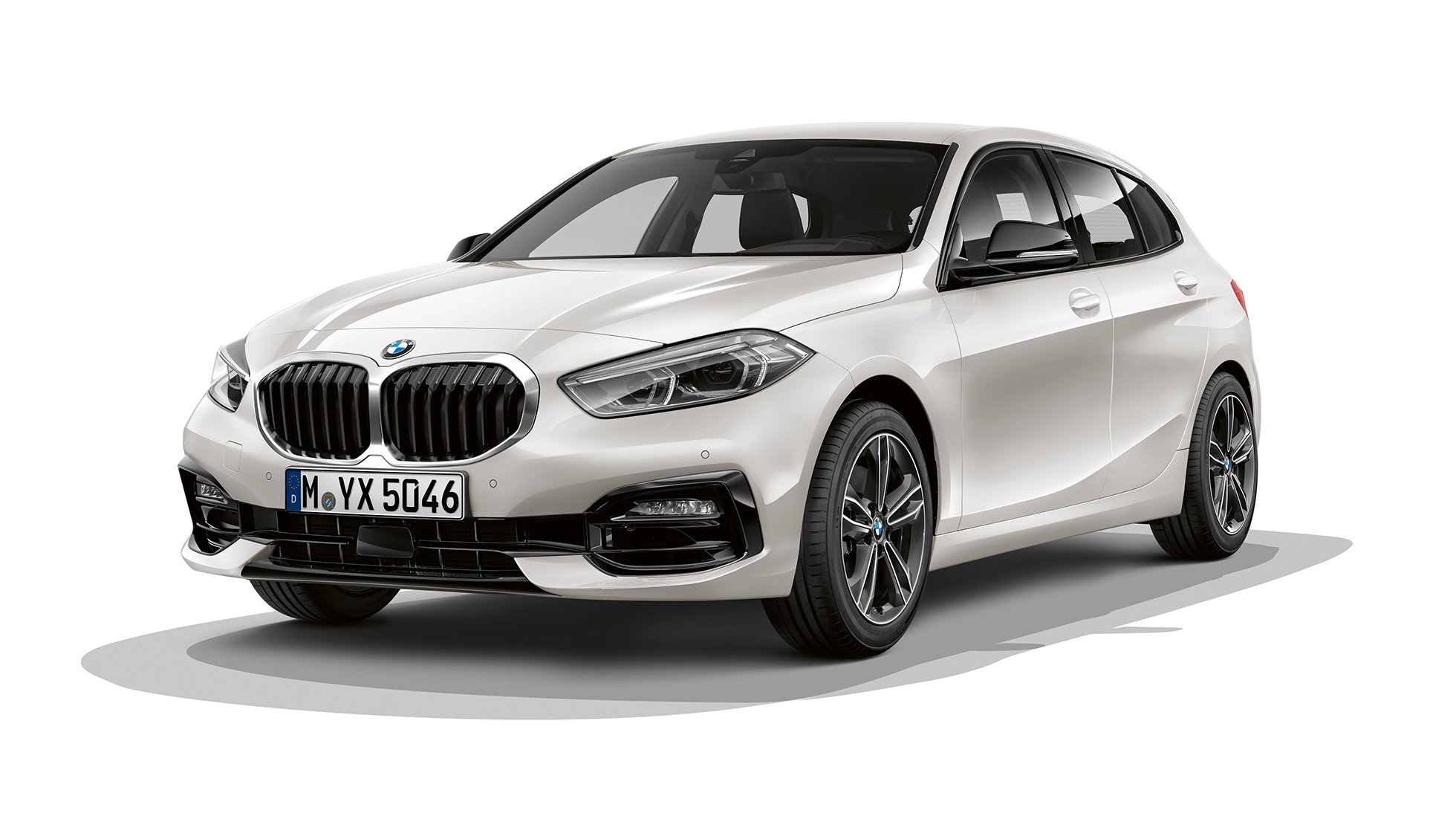

Model Sport Line
The Model Sport Line makes the vehicle appear even more dynamic. Striking design elements in black high-gloss ensure a particularly sporty appearance. The Sport seats for driver and front passenger offer maximum comfort and optimum support. The contents of the Model Advantage, as well as the Lights package, the LED headlights and the LED fog lights, complete the range of the Model Sport Line.
The Model Sport Line makes the vehicle appear even more dynamic. Striking design elements in black high-gloss ensure a particularly sporty appearance. The Sport seats for driver and front passenger offer maximum comfort and optimum support. The contents of the Model Advantage, as well as the Lights package, the LED headlights and the LED fog lights, complete the range of the Model Sport Line.






Exterior
BMW kidney grille with exclusively designed vertical slats in black high-gloss
Front bumper with specific design elements in black high-gloss
Lateral air intakes at the front in black high-gloss
LED headlights
LED fog lights

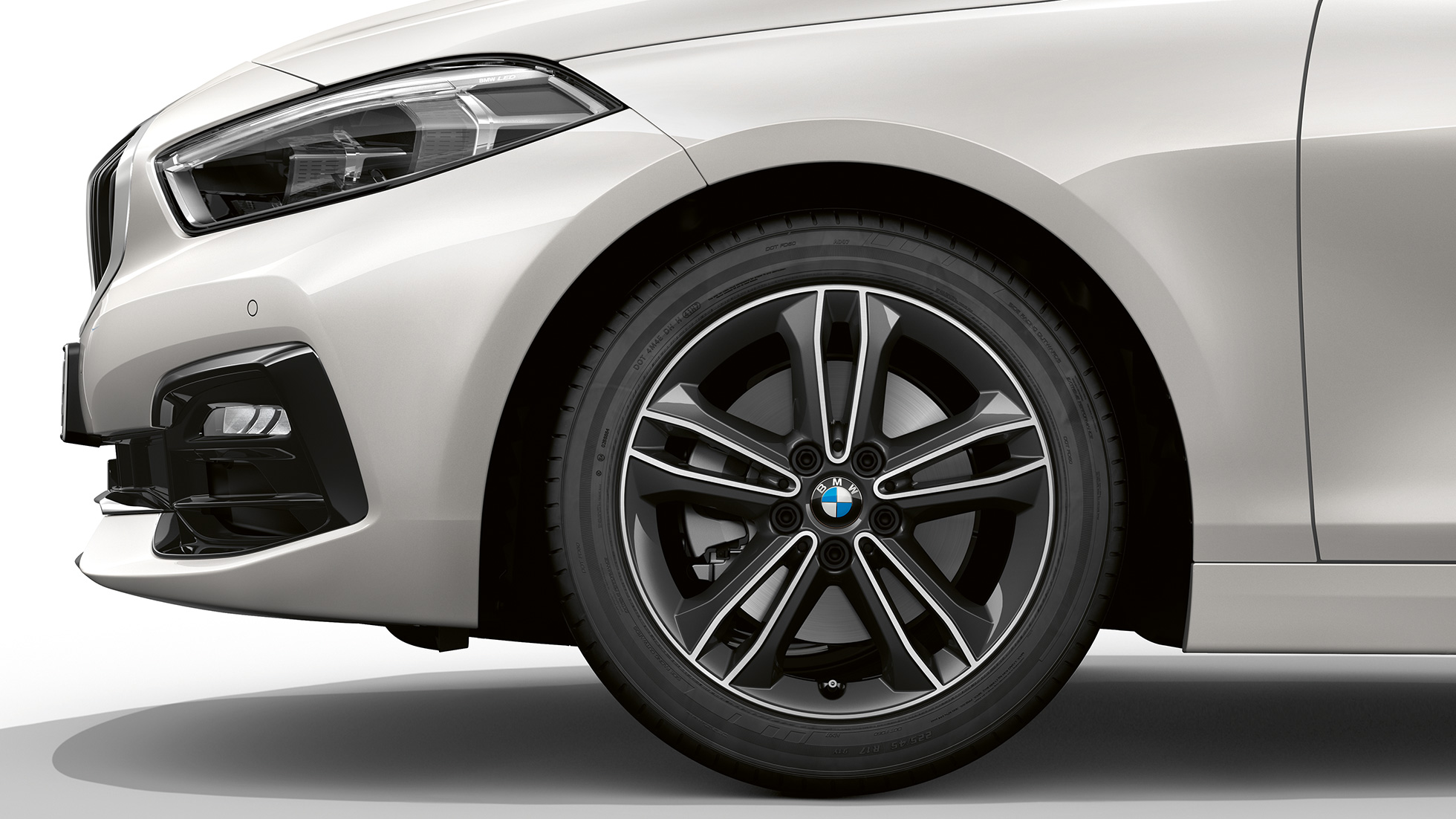

17" light alloy wheels Double-spoke style 549; other wheels available
Mirror caps in body colour, optionally in Black
BMW Individual high-gloss Shadow Line
Rear bumper with specific design elements in Black high-gloss
Park Distance Control (PDC)
Locking wheel bolts

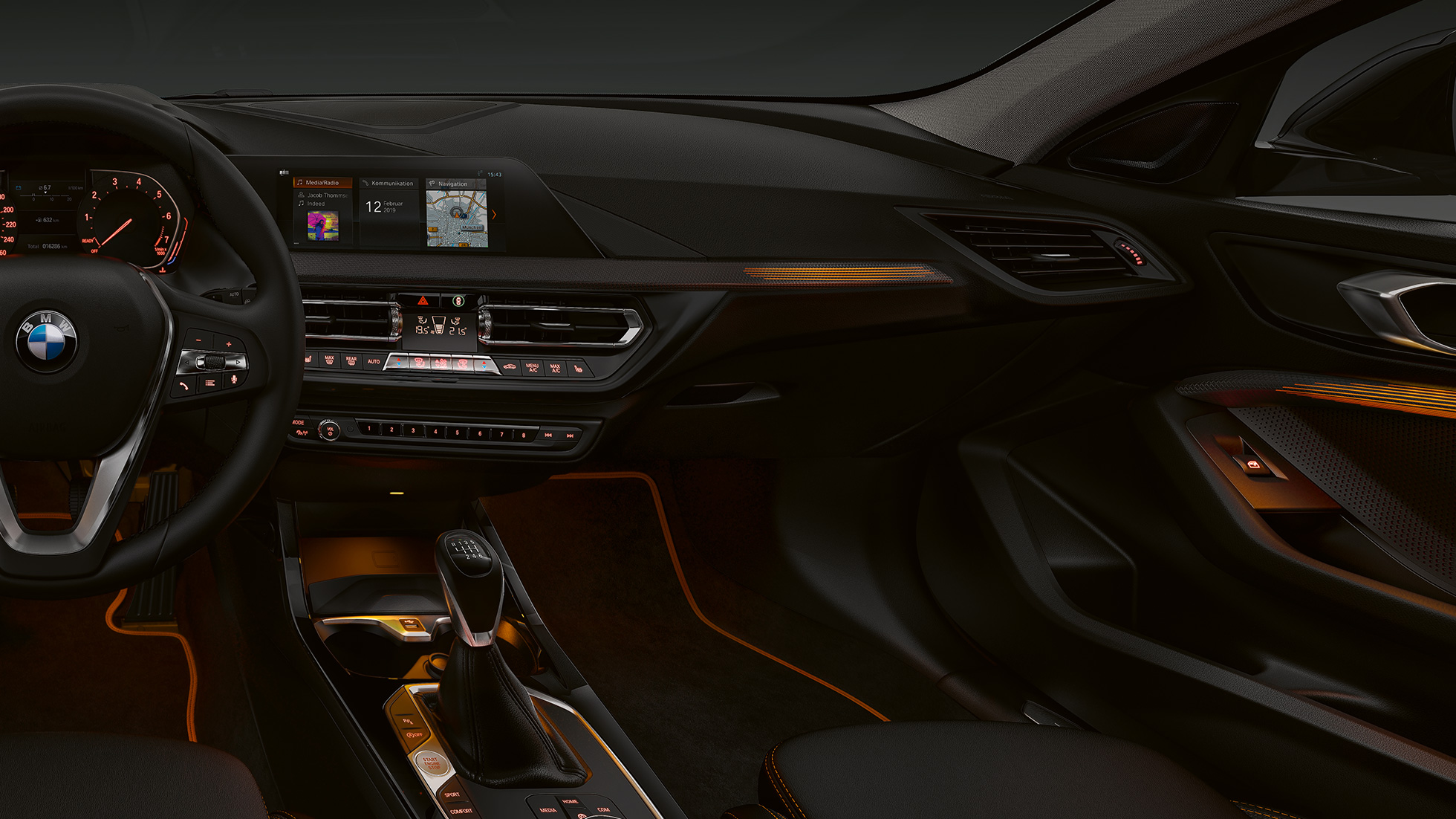

Interior
Door sill finishers in plastic Black with aluminium inserts and "BMW" designation

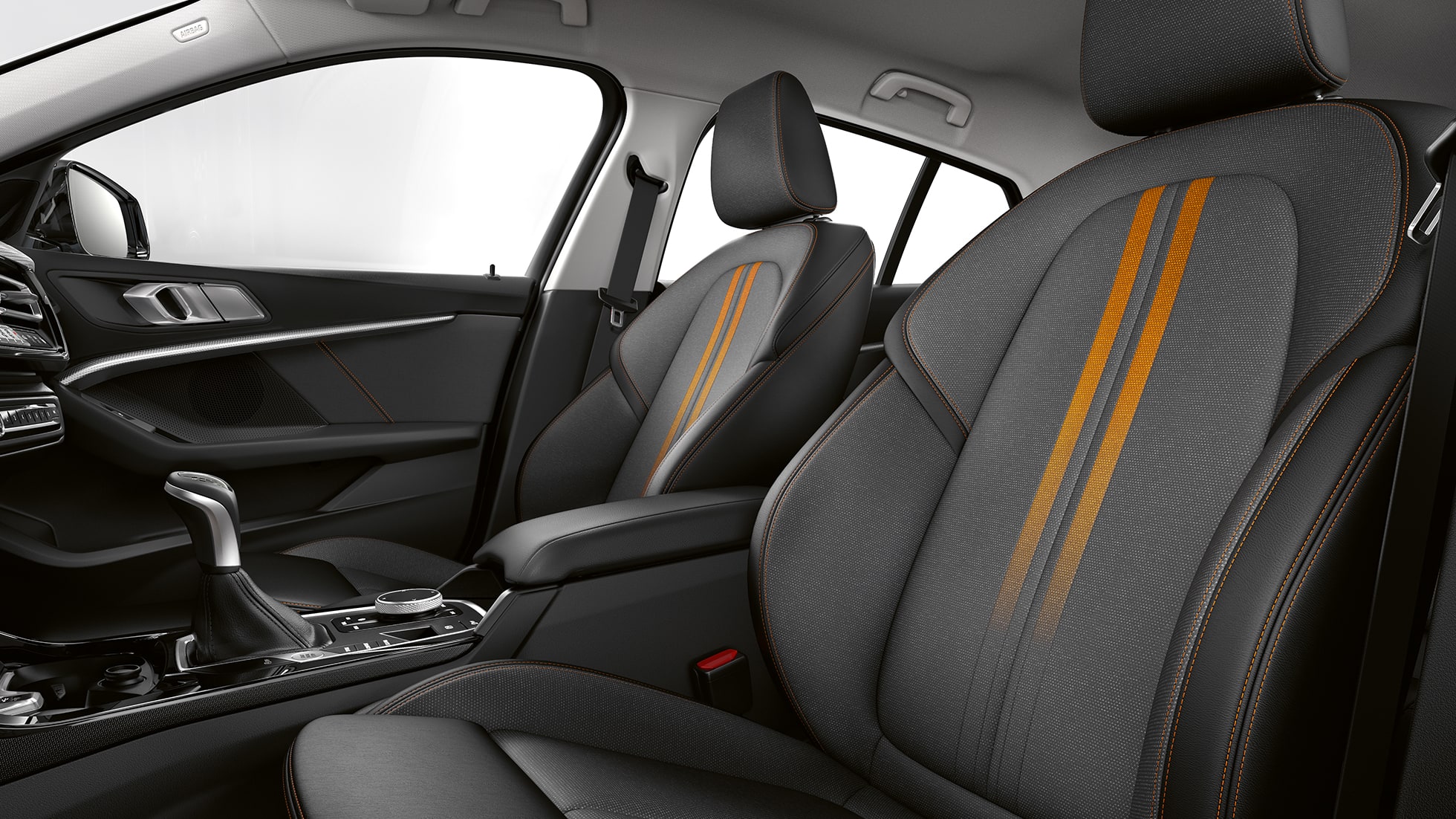

Sport seats for driver and front passenger in Cloth/Sensatec combination Anthracite with accent Grey, optionally accent Orange; other upholsteries available

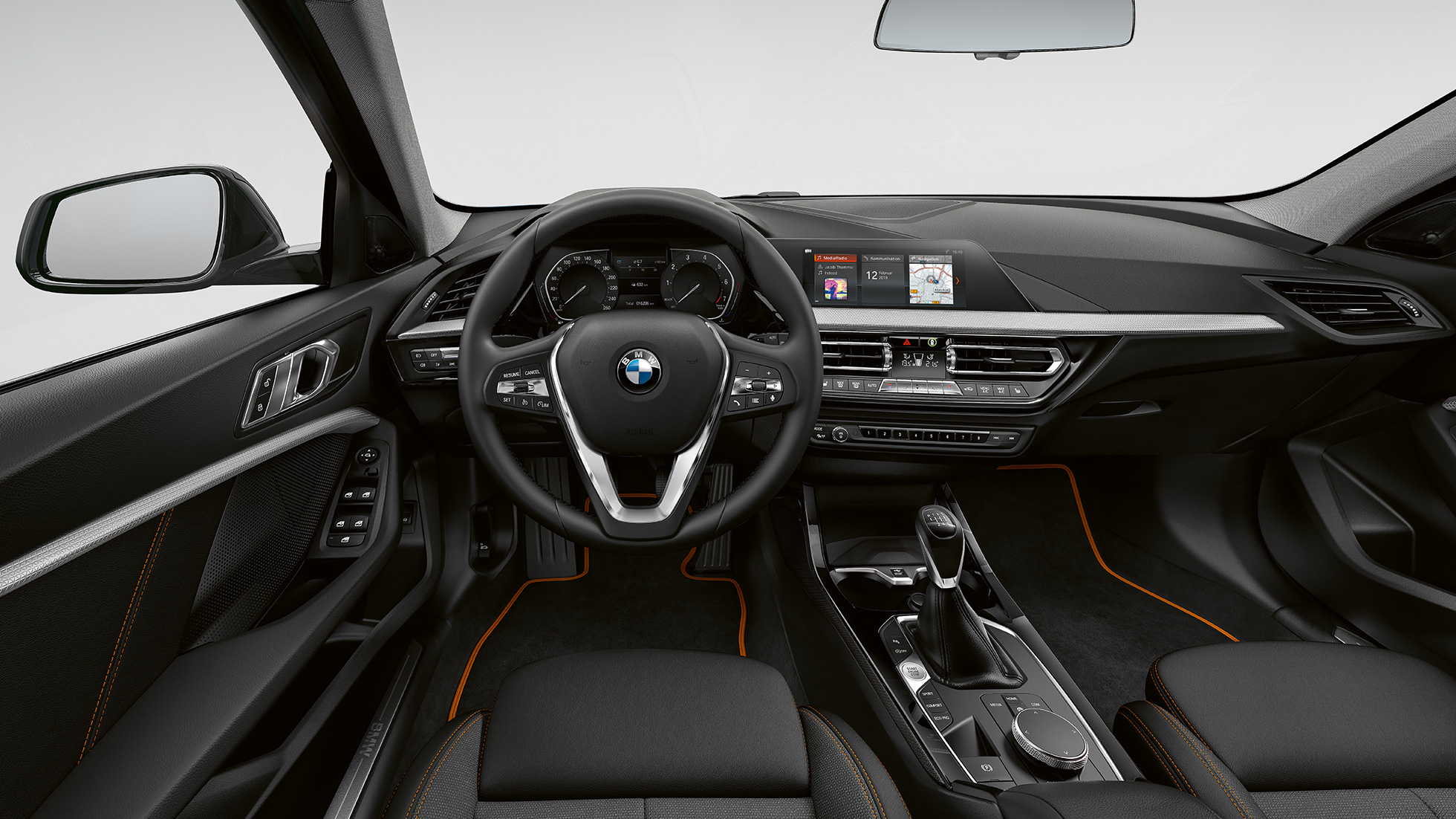

Sport leather steering wheel
Decorative stitching on the upper portion of the instrument panel
Interior trim finishers in ‘Illuminated Berlin’; other trims available
Lights package
Storage compartment package
Cruise control with braking function
Model Advantage
For both the interior and exterior, the Model Advantage offers various functional equipment options which boost comfort and safety.
For both the interior and exterior, the Model Advantage offers various functional equipment options which boost comfort and safety.






Exterior
16" light alloy wheels Star-spoke style 517 (only for 116i/116d)
Park Distance Control (PDC)
Locking wheel bolts
Interior
Storage compartment package
Cruise control with braking function
Height adjustment for front passenger seat
DESIGN.
High-quality equipment features for the exterior and interior of the BMW 1 Series.

- Exterior
- Interior

Double kidney grille.

LED headlights.

Mirror caps in Black.

BMW Individual high-gloss Shadow Line.

Rear lights.

Tailpipe trim.

Sport leather steering wheel.

Sport seats.

Front door sill finishers.

Interior trim finishers 'Illuminated Berlin'.

Panorama glass roof.
DRIVING DYNAMICS.
Drive train, chassis and M Sport steering of the BMW 1 Series.

BMW M135i xDrive engine.

M Sports steering.

Steptronic Sport transmission.

BMW xDrive.

Adaptive suspension.
DRIVER ASSISTANCE.
Driver assistance systems in the BMW 1 Series.

- Driver assistance
- Connectivity

Driving Assistant.

Parking Assistant.

BMW Gesture Control.

BMW Head-Up Display.

BMW Live Cockpit Professional.

Preparation for Apple CarPlay®.
TECHNICAL DATA OF THE BMW 1 SERIES.
- BMW 116i
- BMW 118i
- BMW 120i
- BMW 116d
- BMW 118d
- BMW 120d
- BMW 120d xDrive
- BMW M135i xDrive
- BMW 128ti
No search result found. Please try another input

Unladen weight EU in kg | 1,395 [1,415] |
---|---|
Max. permissible weight in kg | 1,850 [1,870] |
Permitted load in kg | 530 [530] |
Permitted axle load front/rear in kg | 980/940 [1,005/940] |
Luggage capacity min. (seats up or roof down) in l | 380 [380] |
Luggage capacity max. (seats down or roof up) in l | 1,200 [1,200] |
Trailer load 8% (braked) in kg | 1,100 [1,100] |
Trailer load 12% (braked) in kg | 1,100 [1,100] |
Trailer load (unbraked) in kg | 695 [705] |
Cylinders/valves | 3/4 |
---|---|
Capacity in ccm | 1,499 |
Stroke/bore in mm | 94.6/82.0 |
Engine power in kW (hp) at 1/min | 80 (109)/4,300-6,500 |
Engine torque (Nm) at 1/min | 190/1,380-3,800 |
Compression ratio : 1 | 11.0 |
Top speed in km/h | 199 |
---|---|
Acceleration 0–100 km/h in s | 10.6 |
Urban in l/100 km | 7.9 [7.2] |
---|---|
Extra–urban in l/100 km | 5.3 [5.5] |
Combined in l/100 km | 6.3 [6.1] |
CO2 combined emissions in g/km | 144 [141] |
Tank capacity, approx. in l | 42 |
Tyre dimensions front | 205/55 R16 91 W |
---|---|
Tyre dimensions rear | 205/55 R16 91 W |
Wheel dimensions and material front | 7 J x 16 inches, light-alloy |
Wheel dimensions and material rear | 7 J x 16 inches, light-alloy |
Unladen weight EU in kg | 1,365 [1,395] |
---|---|
Max. permissible weight in kg | 1,845 [1,870] |
Permitted load in kg | 555 [550] |
Permitted axle load front/rear in kg | 980/940 [1,005/940] |
Luggage capacity min. (seats up or roof down) in l | 380 [380] |
Luggage capacity max. (seats down or roof up) in l | 1,200 [1,200] |
Trailer load 8% (braked) in kg | 1,300 [1,300] |
Trailer load 12% (braked) in kg | 1,300 [1,300] |
Trailer load (unbraked) in kg | 680 [695] |
Cylinders/valves | 3/4 |
---|---|
Capacity in ccm | 1,499 |
Stroke/bore in mm | 94.6/82.0 |
Engine power in kW (hp) at 1/min | 103 (140)/4,600-6,500 |
Engine torque (Nm) at 1/min | 220/1,480-4,200 |
Compression ratio : 1 | 11.0 |
Top speed in km/h | 211 [211] |
---|---|
Acceleration 0–100 km/h in s | 8.5 [8.5] |
Urban in l/100 km | 7.9 [7.0] |
---|---|
Extra–urban in l/100 km | 5.3 [5.3] |
Combined in l/100 km | 6.3 [5.9] |
CO2 combined emissions in g/km | 143 [135] |
Tank capacity, approx. in l | 42/50 |
Tyre dimensions front | 205/55 R16 91 W |
---|---|
Tyre dimensions rear | 205/55 R16 91 W |
Wheel dimensions and material front | 7 J x 16 inches, steel |
Wheel dimensions and material rear | 7 J x 16 inches, steel |
Unladen weight EU in kg | 1,465 |
---|---|
Max. permissible weight in kg | 1,920 |
Permitted load in kg | 530 |
Permitted axle load front/rear in kg | 1,035/955 |
Luggage capacity min. (seats up or roof down) in l | 380 |
Luggage capacity max. (seats down or roof up) in l | 1,200 |
Trailer load 8% (braked) in kg | 1,300 |
Trailer load 12% (braked) in kg | 1,300 |
Trailer load (unbraked) in kg | 730 |
Cylinders/valves | 3/4 |
---|---|
Capacity in ccm | 1,499 |
Stroke/bore in mm | 94.6/82.0 |
Engine power in kW (hp) at 1/min | 131 (178)/5,000-5,500 |
Engine torque (Nm) at 1/min | 280/1,350-4,200 |
Compression ratio : 1 | 11.0 |
Top speed in km/h | 235 |
---|---|
Acceleration 0–100 km/h in s | 7.0 |
Urban in l/100 km | 7.9 |
---|---|
Extra–urban in l/100 km | 5.5 |
Combined in l/100 km | 6.4 |
CO2 combined emissions in g/km | 147-146 |
Tank capacity, approx. in l | 42 |
Tyre dimensions front | 225/45 R17 94 Y XL |
---|---|
Tyre dimensions rear | 225/45 R17 94 Y XL |
Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
Unladen weight EU in kg | 1,450 [1,460] |
---|---|
Max. permissible weight in kg | 1,925 [1,940] |
Permitted load in kg | 550 [555] |
Permitted axle load front/rear in kg | 1,025/980 [1,040/980] |
Luggage capacity min. (seats up or roof down) in l | 380 [380] |
Luggage capacity max. (seats down or roof up) in l | 1,200 [1,200] |
Trailer load 8% (braked) in kg | 1,300 [1,300] |
Trailer load 12% (braked) in kg | 1,300 [1,300] |
Trailer load (unbraked) in kg | 725 [730] |
Cylinders/valves | 3/4 |
---|---|
Capacity in ccm | 1.496 |
Stroke/bore in mm | 90.0/84.0 |
Engine power in kW (hp) at 1/min | 85 (116)/4,000 |
Engine torque (Nm) at 1/min | 270/1,750-2,250 |
Compression ratio : 1 | 16.5 |
Top speed in km/h | 198 [198] |
---|---|
Acceleration 0–100 km/h in s | 10.3 [10.1] |
Urban in l/100 km | 5.2 [5.0] |
---|---|
Extra–urban in l/100 km | 4,4 [4.3-4.2] |
Combined in l/100 km | 4.7 [4.5] |
CO2 combined emissions in g/km | 123 [119-118] |
Tank capacity, approx. in l | 42/50 |
Tyre dimensions front | 205/55 R16 91 W |
---|---|
Tyre dimensions rear | 205/55 R16 91 W |
Wheel dimensions and material front | 7 J x 16 inches, steel |
Wheel dimensions and material rear | 7 J x 16 inches, steel |
Unladen weight EU in kg | 1,480 [1,505] |
---|---|
Max. permissible weight in kg | 1,950 [1,980] |
Permitted load in kg | 545 [550] |
Permitted axle load front/rear in kg | 1,050/980 [1,080/980] |
Luggage capacity min. (seats up or roof down) in l | 380 [380] |
Luggage capacity max. (seats down or roof up) in l | 1,200 [1,200] |
Trailer load 8% (braked) in kg | 1,300 [1,300] |
Trailer load 12% (braked) in kg | 1,300 [1,300] |
Trailer load (unbraked) in kg | 740 [750] |
Cylinders/valves | 4/4 |
---|---|
Capacity in ccm | 1,995 |
Stroke/bore in mm | 90.0/84.0 |
Engine power in kW (hp) at 1/min | 110 (150)/4,000 |
Engine torque (Nm) at 1/min | 350/1,750-2,500 |
Compression ratio : 1 | 16.5 |
Top speed in km/h | 215 [214] |
---|---|
Acceleration 0–100 km/h in s | 8.5 [8.4] |
Urban in l/100 km | 5.6 [5.4] |
---|---|
Extra–urban in l/100 km | 4.4 [4.4-4.3] |
Combined in l/100 km | 4.8 [4.8-4.7] |
CO2 combined emissions in g/km | 127 [126-123] |
Tank capacity, approx. in l | 42/50 |
Tyre dimensions front | 205/55 R16 91 W |
---|---|
Tyre dimensions rear | 205/55 R16 91 W |
Wheel dimensions and material front | 7 J x 16 inches, steel |
Wheel dimensions and material rear | 7 J x 16 inches, steel |
Unladen weight EU in kg | 1.525 |
---|---|
Max. permissible weight in kg | 2,000 |
Permitted load in kg | 550 |
Permitted axle load front/rear in kg | 1,085/985 |
Luggage capacity min. (seats up or roof down) in l | 380 |
Luggage capacity max. (seats down or roof up) in l | 1,200 |
Trailer load 8% (braked) in kg | 1,300 |
Trailer load 12% (braked) in kg | 1,300 |
Trailer load (unbraked) in kg | 750 |
Cylinders/valves | 4/4 |
---|---|
Capacity in ccm | 1.995 |
Stroke/bore in mm | 90.0/84.0 |
Engine power in kW (hp) at 1/min | 140 (190)/4,000 |
Engine torque (Nm) at 1/min | 400/1,750-2,500 |
Compression ratio : 1 | 16.5 |
Top speed in km/h | 230 |
---|---|
Acceleration 0–100 km/h in s | 7.3 |
Urban in l/100 km | 5.4-5.3 |
---|---|
Extra–urban in l/100 km | 4.5-4.2 |
Combined in l/100 km | 4.5-4.6 |
CO2 combined emissions in g/km | 127-122 |
Tank capacity, approx. in l | 50 |
Tyre dimensions front | 225/45 R17 94 Y XL |
---|---|
Tyre dimensions rear | 225/45 R17 94 Y XL |
Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
Unladen weight EU in kg | 1,590 |
---|---|
Max. permissible weight in kg | 2.065 |
Permitted load in kg | 550 |
Permitted axle load front/rear in kg | 1,105/1,020 |
Luggage capacity min. (seats up or roof down) in l | 380 |
Luggage capacity max. (seats down or roof up) in l | 1,200 |
Trailer load 8% (braked) in kg | 1,500 |
Trailer load 12% (braked) in kg | 1,500 |
Trailer load (unbraked) in kg | 750 |
Cylinders/valves | 4/4 |
---|---|
Capacity in ccm | 1,995 |
Stroke/bore in mm | 90.0/84.0 |
Engine power in kW (hp) at 1/min | 140 (190)/4,000 |
Engine torque (Nm) at 1/min | 400/1,750-2,500 |
Compression ratio : 1 | 16.5 |
Top speed in km/h | 229 |
---|---|
Acceleration 0–100 km/h in s | 7.0 |
Urban in l/100 km | 5.6 |
---|---|
Extra–urban in l/100 km | 4.7 |
Combined in l/100 km | 5.0 |
CO2 combined emissions in g/km | 132 |
Tank capacity, approx. in l | 50 |
Tyre dimensions front | 225/45 R17 94 Y XL |
---|---|
Tyre dimensions rear | 225/45 R17 94 Y XL |
Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
Unladen weight EU in kg | 1,600 |
---|---|
Max. permissible weight in kg | 2.085 |
Permitted load in kg | 560 |
Permitted axle load front/rear in kg | 1,120/1,020 |
Luggage capacity min. (seats up or roof down) in l | 380 |
Luggage capacity max. (seats down or roof up) in l | 1,200 |
Trailer load 8% (braked) in kg | - |
Trailer load 12% (braked) in kg | - |
Trailer load (unbraked) in kg | - |
Cylinders/valves | 4/4 |
---|---|
Capacity in ccm | 1,998 |
Stroke/bore in mm | 94.6/82.0 |
Engine power in kW (hp) at 1/min | 225 (306)/5,000-6,250 |
Engine torque (Nm) at 1/min | 450/1,750-4,500 |
Compression ratio : 1 | 9.5 |
Top speed in km/h | 250 |
---|---|
Acceleration 0–100 km/h in s | 4.8 |
Urban in l/100 km | 9.3 |
---|---|
Extra–urban in l/100 km | 6.4 |
Combined in l/100 km | 7.5 |
CO2 combined emissions in g/km | 171 |
Tank capacity, approx. in l | 50 |
Tyre dimensions front | 225/40 R18 92 Y XL |
---|---|
Tyre dimensions rear | 225/40 R18 92 Y XL |
Wheel dimensions and material front | 8 J x 18 inches, light-alloy |
Wheel dimensions and material rear | 8 J x 18 inches, light-alloy |
Unladen weight EU in kg | 1,520 |
---|---|
Max. permissible weight in kg | 2,000 |
Permitted load in kg | 555 |
Permitted axle load front/rear in kg | 1,085/990 |
Luggage capacity min. (seats up or roof down) in l | 380 |
Luggage capacity max. (seats down or roof up) in l | 1,200 |
Trailer load 8% (braked) in kg | - |
Trailer load 12% (braked) in kg | - |
Trailer load (unbraked) in kg | - |
Cylinders/valves | 4/4 |
---|---|
Capacity in ccm | 1,998 |
Stroke/bore in mm | 94.6/82.0 |
Engine power in kW (hp) at 1/min | 195 (265)/5,000-5,500 |
Engine torque (Nm) at 1/min | 400/1,750-4,500 |
Compression ratio : 1 | 9.5 |
Top speed in km/h | 250 |
---|---|
Acceleration 0–100 km/h in s | 6.1 |
Urban in l/100 km | 8.4 |
---|---|
Extra–urban in l/100 km | 5.9 |
Combined in l/100 km | 6.8 |
CO2 combined emissions in g/km | 156 |
Tank capacity, approx. in l | 50 |
Tyre dimensions front | 225/40 R18 92 Y XL |
---|---|
Tyre dimensions rear | 225/40 R18 92 Y XL |
Wheel dimensions and material front | 8 J x 18 inches, light-alloy |
Wheel dimensions and material rear | 8 J x 18 inches, light-alloy |
Fuel consumption and CO2 emissions of the BMW 1 Series.
BMW M135i xDrive:
Fuel consumption in l/100 km (combined): 7.5
CO2 emissions in g/km (combined): 171Images show optional equipment, screens and displays depend on equipment options.
The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tyres available on the selected model.
The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.
For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.
